Motor parameter:
ALLOWABLE TORQUE BEING WITH GEARHEAD
Note: Above are only some typical models. For more information or a customized motor, Pls contact us.
| D2BLD50-12GN-20S | D2BLD50-24GN-20S | D2BLD50-36GN-20S | |
| Power W | 50 | 50 | 50 |
| Voltage V | 12 | 24 | 36 |
| No load speed rpm | 3300 | 3300 | 3300 |
| Rated speed rpm | 3000 | 3000 | 3000 |
| Rated current A | 5.21 | 2.6 | 1.74 |
| Rated torque N.m | 0.24 | 0.24 | 0.24 |
| Peak torque N.m | 0.72 | 0.72 | 0.72 |
| No-load current A | <0.8A | <0.4A | <0.3A |
ALLOWABLE TORQUE BEING WITH GEARHEAD
| Reducer type | Worm gear reducer | Model | RV025 | |||||
| Gear ratio | 7.5 | 10 | 15 | 20 | 30 | 40 | 50 | 60 |
| Rated output speed rpm | 267 | 200 | 133 | 100 | 67 | 50 | 40 | 33 |
| Rated output torque Nm | 1.4 | 1.9 | 2.9 | 3.7 | 5.3 | 6.7 | 7.8 | 9.3 |
Customizable accessories: motor length, shaft, voltage, power, rated speed and so on.

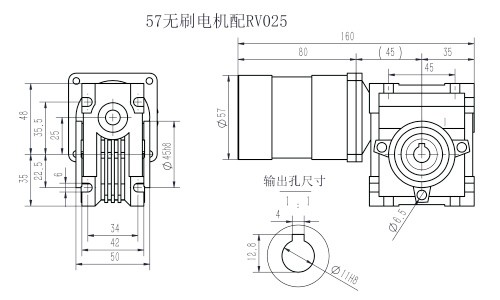

Dimensions (Unit: mm )
Mounting screws are included with gearhead
High Voltage Wire Plughole Corresponding Signal Explanation
| Power wire | Hall wire | ||||||
| Red | Yellow | Black | Red | Black | Hu | HV | HW |
| U | V | W | 5V | GND | Blue | Green | White |
