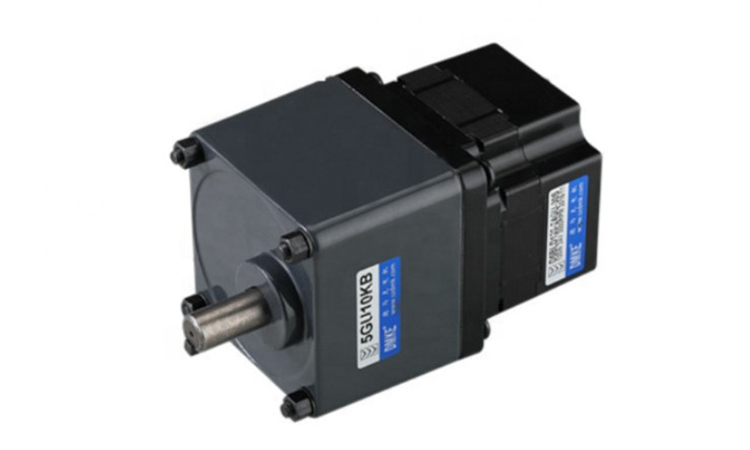

200w 24v 3 phase brushless dc electric motor price

  • Motor Type: 3 phase brushless dc electric motor
  • Model: D5BLD200-24GU-30S/5GU100K
  • Rated Power:200W
  • Rated Voltage: 24v
  • Rated  current:10.43A
  • Motor Rated Speed: 3000RPM/MIN
  • Gear ratio:1:100
  • Final output speed:30rpm/min
  • Rated torque:20N.m
  • Protection rank:IP54
  • Poles:8poles
    • Hotline: 86-18802037981
    • Email:  shirley.fu@gzdmkemotor.cn
Consult


Motor Specification:

Model

D5BLD200-12GU

-30S

D5BLD200-24GU

-30S

D5BLD200-36GU

-30S

D5BLD200-48GU

-30S

D5BLD200-310GU

-30S

Power W 200 200 200 200 200
Voltage V 12 24 36 48 310
No load speed rpm 3300 3300 3300 3300 3300
Rated speed rpm 3000 3000 3000 3000 3000
Rated current A 20.83 10.42 6.94 5.21 0.81
Rated torque N.m 0.64 0.64 0.64 0.64 0.64
Peak torque N.m 1.91 1.91 1.91 1.91 1.91
No-load current A <6.2A <4.13A <2.5A <1.61A <0.4A

Different specification based on different gear ratio:

Contact us now for updated size drawing if you have other specification request.

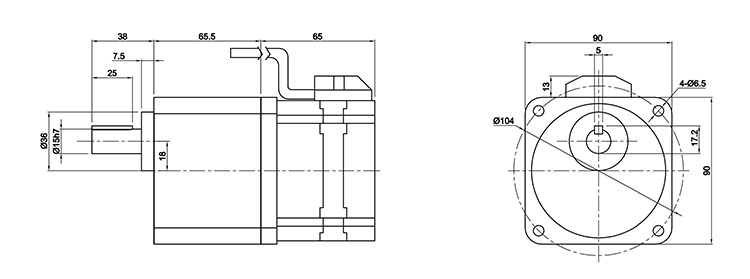

Dimensions (Unit: mm )

Mounting screws are included with gearhead
