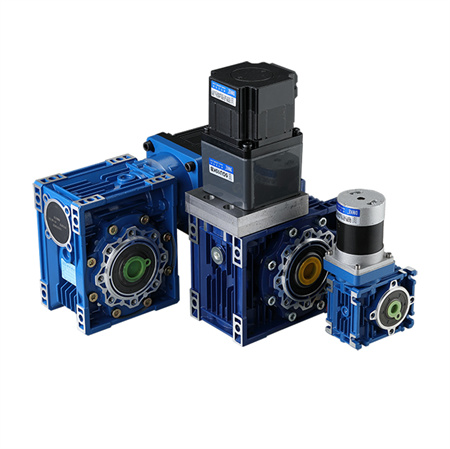

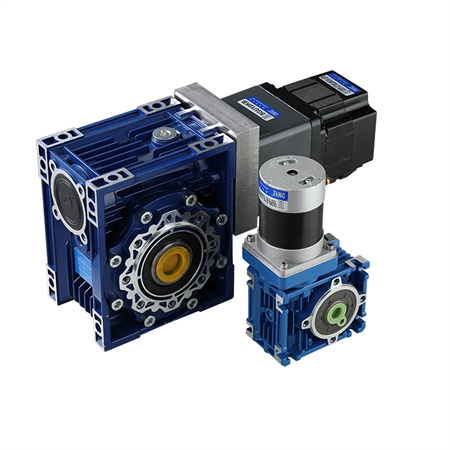

12v 24v 36v 48v 100w 100 rpm bldc brushless dc worm gear motor

  • Type:bldc brushless dc worm gear motor
  • Model: D2BLD100-24A-20S/RV30-30
  • Rated Power:100W
  • Rated Voltage: 24v
  • Rated  current:5.2A
  • Motor Rated Speed: 2000RPM/MIN
  • Gear ratio:1:30
  • Final output speed:67rpm/min
  • Rated torque:5.7N.m
  • Protection rank:IP54
  • Poles:4poles
    • Hotline: 86-18802037981
    • Email:  shirley.fu@gzdmkemotor.cn


Consult
Model D2BLD100-12A-20S D2BLD100-24A-20S D2BLD100-36A-20S D2BLD100-48A-20S D2BLD100-310A-20S
Power W 100 100 100 100 100
Voltage V 12 24 36 48 310
No load speed rpm 2800 2800 2800 2800 2800
Rated speed rpm 2000 2000 2000 2000 2000
Rated current A 10.42 5.21 3.47 2.6 0.4
Rated torque N.m 0.48 0.48 0.48 0.48 0.48
Peak torque N.m 1.43 1.43 1.43 1.43 1.43
No-load current A <1.2A <0.8A <0.6A <0.4A <0.3A



ALLOWABLE TORQUE BEING WITH GEARHEAD

Gearhead type Gearhead model Gearhead rate
worm gear box RV030-□ 7.5、10、15、20、25、30、40、50、60、80


ALLOWABLE TORQUE  BASED ON DIFFERENT GEAR RATIO:

Reducer type Worm gear reducer Model RV030
Gear ratio 7.5 10 15 20 25 30 40 50 60 80
Rated output speed rpm 267 200 133 100 80 67 50 40 33 25
Rated output torque Nm 2.9 3.8 5.7 7.4 9.1 10.6 13.4 12 17 12

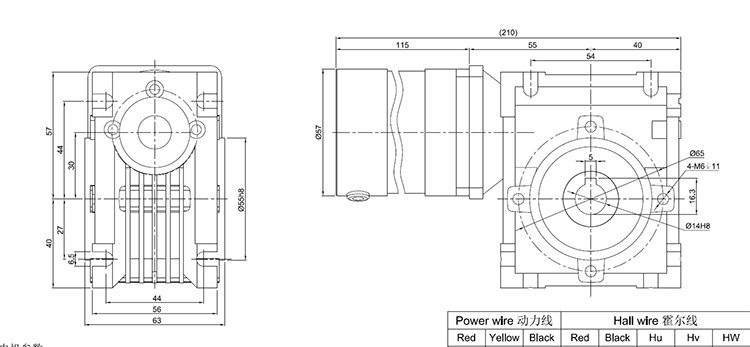

Dimensions (Unit: mm )

Mounting screws are included with gearhead

High Voltage Wire Plughole Corresponding Signal Explanation
Power wire Hall wire
Red Yellow Black Red Black Hu HV HW
U V W 5V GND Blue Green White
