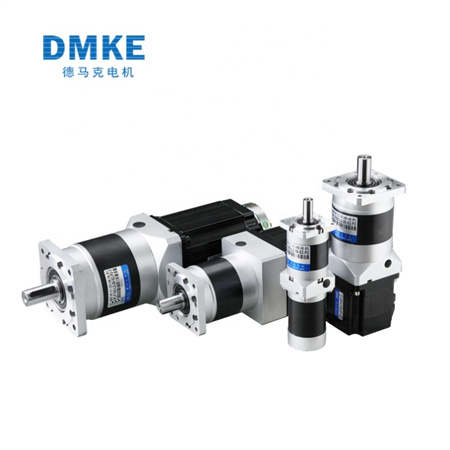

90mm 12v 24v 2hp bldc brushless planetary magnet electric dc gear motor

  • sdaType: bldc brushless planetary dc gear motorsd
  • Model: D5BLD450-48A-30S/PLF90-40asdsadas
  • Rated Power:450W
  • Rated Voltage: 48v
  • Rated  current:11.73A
  • Motor Rated Speed: 3000RPM/MIN
  • Gear ratio:1:40
  • Final output speed:75rpm/min
  • Rated torque:52N.m
  • Protection rank:IP54
  • Poles:8poles
    • Hotline: 86-18802037981
    • Email:  shirley.fu@gzdmkemotor.cn
D5BLD450-48A-30S/PLF90-40 Consult



Motor specification:
(warm remind: below specification is based on 400W 48V 3000rpm +PLF90-40 planetary gear box. If you have any other specification needed, please just send messages to us, we will update the size drawing to you soon,thanks.)



Model
D5BLD450-48A-30S/PLF90-40
Power
450W
Voltage
48V
No load speed (motor)
3300 rpm/min
Rated speed (motor)
3000 rpm/min
Rated current
3.12A
Peak current
6.24A
Gear ratio
1:40
Final output speed
75rpm/min
Rated torque after gear box
52N.m
Peak torque after gear box
104N.m

PLF090 planetary gear ratio parameter list (Please kindly choose the gear ratio you need and send message to let us know, we will update the size drawing based on your new gear ratio request soon.
