DMKE 1500W 48V Planetary Gear Motor

  • Type:BLDC Planetary Gear Motor
  •
  • Model:D110BLD1500-48A-30S/PLF0120-16
  •
  • Voltage: 24V,36V, 48V,310V
  •
  • Motor Rated Torque: 4.78N.M
  •
  • Motor Rated Speed(RPM): 3000RPM
  •
  • Gear ratio:1:16
  •
  • Final output speed:187r/min
  •
  • Output rated torque:68N.m
  •
  • Output Power:1500W
  •
  • Usage:Tie-yarn machine / Massager /Cut-card machine
  •
    • Contact:
      Mobile:   +86 13640275665
      Wechat:  +86 13640275665
      Whatsapp:  +86 13640275665
      Skype:  shirleyfu96
      Email:  shirley@gzdmkemotor.com

Consult



Model D110BLD1500-36A-30S D110BLD1500-48A-30S D110BLD1500-310A-30S
Power W 1500 1500 1500
Voltage V 36 48 310
No load speed rpm 4200 4200 4200
Rated speed rpm 3000 3000 3000
Rated current A 52.08 39.06 6.05
Rated torque N.m 4.78 4.78 4.78
Peak torque N.m 14.33 14.33 14.33
No-load current A <20A <15A <7A

 Note: Above are only some typical models. For more information or a customized motor, Pls contact us.

Customizable accessories: motor length, shaft, voltage, power, rated speed and so on.

High Voltage Wire Plughole Corresponding Signal Explanation

Power wire Hall wire
Red Yellow Black Red Black Hu HV HW
U V W 5V GND Blue Green White

ALLOWABLE TORQUE BEING WITH GEARHEAD

Gearhead type Gearhead model Gearhead rate
Precision planet gear box PLF120-□ 1pole:4、5、7、10
2pole:16、20、25、28、
35、40、50、70
3pole:80100、125、140、
175、200、250


□ in Gearhead type is a value of Gearhead rate



Gear ratio 3 4 5 7 10 16 20 25 28 35 40 50 80 100 125 140 175 200 250
Rated output speed(rpm) 1000 750 600 429 300 188 150 120 107 86 75 60 38 30 24 21 17 15 12
Rated torque(Nm) 14 18 23 32 46 72 90 112 126 157 180 224 310 310 329 310 301 310 329
Peak torque(Nm) 41.3 55.0 68.8 96.3 137.5 215.4 269.3 336.6 377.0 471.3 500.0 528.0 620.0 620.0 658.0 620.0 658.0 620.0 658.0
Rotor inertia(kgcm2) 1.65 1.22 1.15 1.13 1.11 1.22 1.15 1.15 1.13 1.13 1.11 1.11 1.15 1.15 1.15 1.13 1.13 1.11 1.11

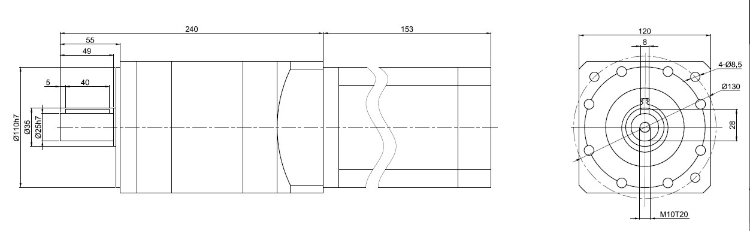

Dimensions (Unit: mm )

Mounting screws are included with gearhead
