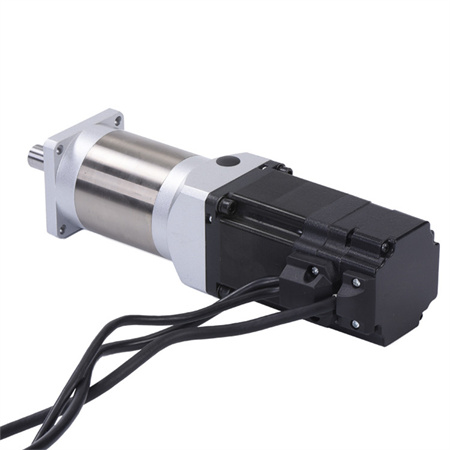

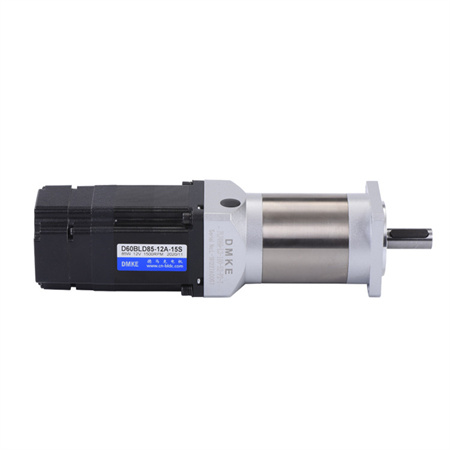

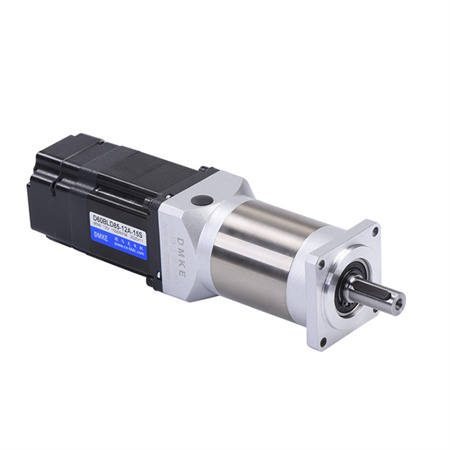

60mm 12v 24v brushless dc motor with planetary gearbox

  • Motor Type: brushless dc motor with planetary gearbox
  • Model: D60BLD85-12A-15S/PLF60-100
  • Rated Power:85W
  • Rated Voltage: 12v
  • Rated  current:8.9A
  • Motor Rated Speed: 1500RPM/MIN
  • Gear ratio:1:100
  • Final output speed:15rpm/min
  • Rated torque:37N.m
    • Contact:
      Mobile:   +86 13640275665
      Wechat:  +86 13640275665
      Whatsapp:  +86 13640275665
      Skype:  shirleyfu96
      Email:  shirley@gzdmkemotor.com


Consult

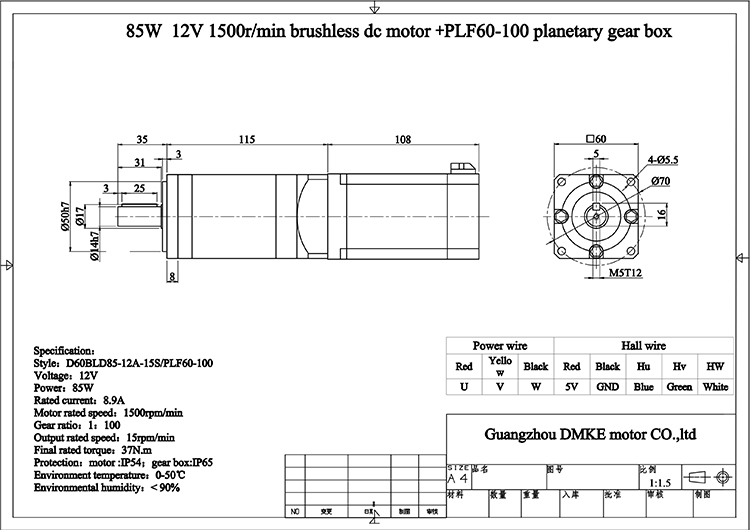

Dimensions (Unit: mm )

Mounting screws are included with gearhead



ALLOWABLE TORQUE BEING WITH GEARHEAD
Gearhead type Gearhead model Gear ratio
Precision planet gear box PLF060-口  1pole:4、5、7、10
2pole:16、20、25、28、
35、40、50、70
3pole:80、100、125、140、
175、200、250

□  Different specification based on different gear ratio:
Gear ratio 4 5 7 10 16 20 25 28 35 40 50 70 80 100 125 140 175 200 250
Rated output speed(rpm) 750 600 429 300 188 150 120 107 86 75 60 43 38 30 24 21 17 15 12
Rated torque(Nm) 3.7 4.6 6.4 9.2 14.4 18.0 22.4 25.1 31.4 35.9 44.9 62.8 71.8 89.8 109.8 123.0 153.8 175.7 219.7
Peak torque(Nm) 11.0 13.8 19.3 17.0 43.1 53.9 67.3 75.4 94.3 107.7 134.7 143.0 215.4 240.0 264.0 240.0 264.0 240.0 264.0
Rotor inertia(kgcm2) 0.094 0.092 0.091 0.091 0.094 0.092 0.092 0.091 0.091 0.091 0.091 0.091 0.092 0.092 0.092 0.091 0.091 0.091 0.091
