D6D250-24GU-30S/6GU200K

  • Type:DC Brush Gear Motor
  • Model:D6D250-24GU-30S/6GU200K
  • Voltage: 24V 48V 90V
  • Speed(RPM): 3000RPM
  • Output Power:250w
  • Usage:Boat, Car, Electric Bicycle, Fan,Home Appliance
    • Hotline: 86-18802037981
    •              86-13570144285
    • Email:  faye@gzdmkemotor.cn
    •            shirley@gzdmkemotor.cn
Consult



Motor Performance Parameters
Type Power
W
Voltage
V
No-load Parameters Load Parameters Brush Life
H
Motor Weight
kg
Speed Current Speed Torque Current
r/min A r/min mN.m A
Z6D 250 24 3600 4.0max 3200 746 16.0 2000 5
250 90 3300 2.0max 3000 796 4.2 2000 5
250 220 3300 0.2max 2800 853 1.5 2000 5

Note: Above are only some typical models. For more information or a customized motor, Pls contact us.

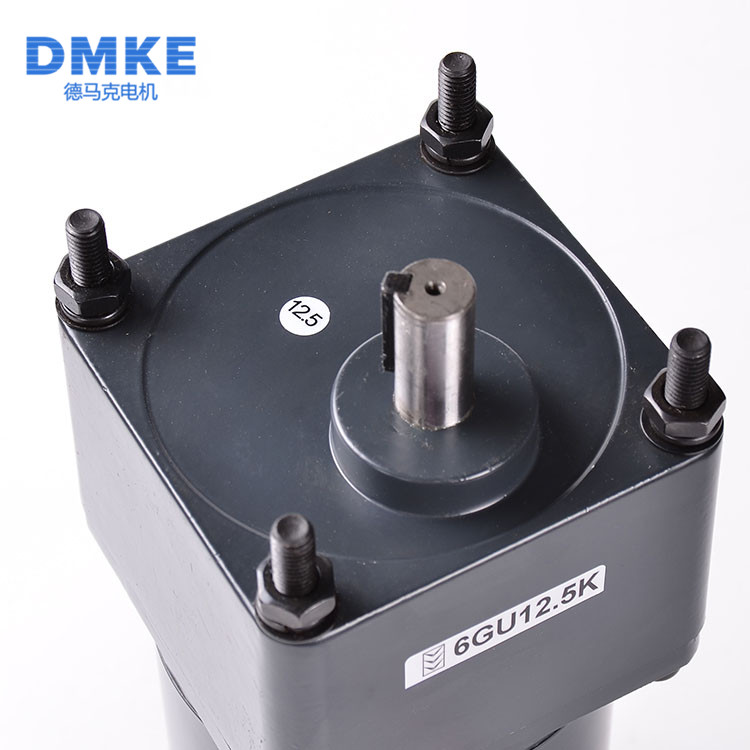

Gearbox model:6GU∏K

The max allowable torque of the gearbox: 40.0nm

Transmission efficiency:gear ratio:3-9: 81%, 12.5-18:73%, 25-200:66%

Dimensions (Unit: mm )
