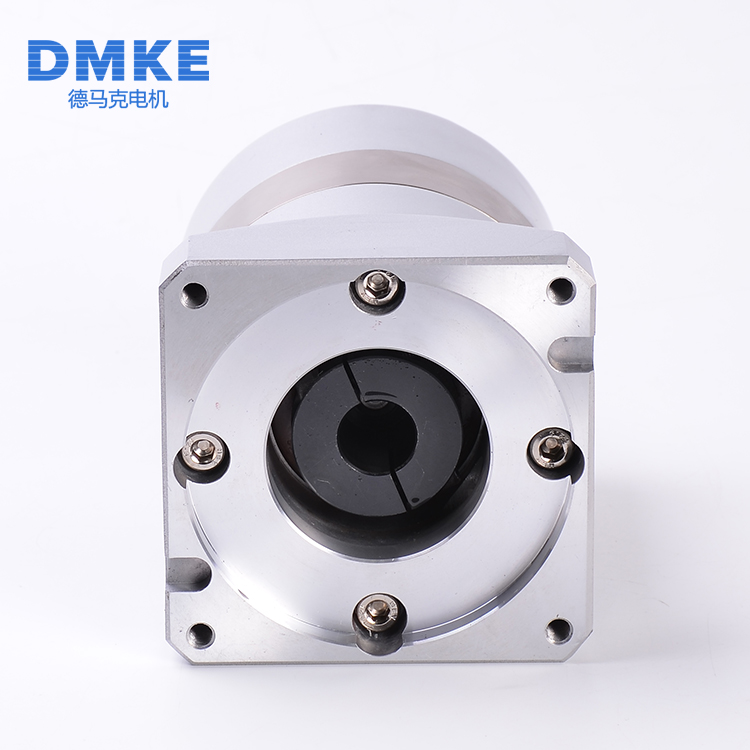

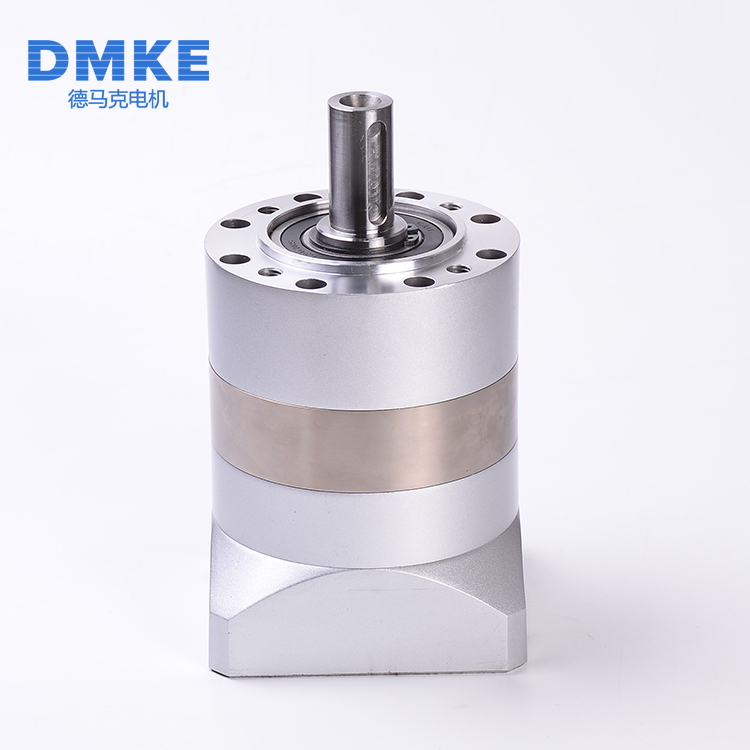

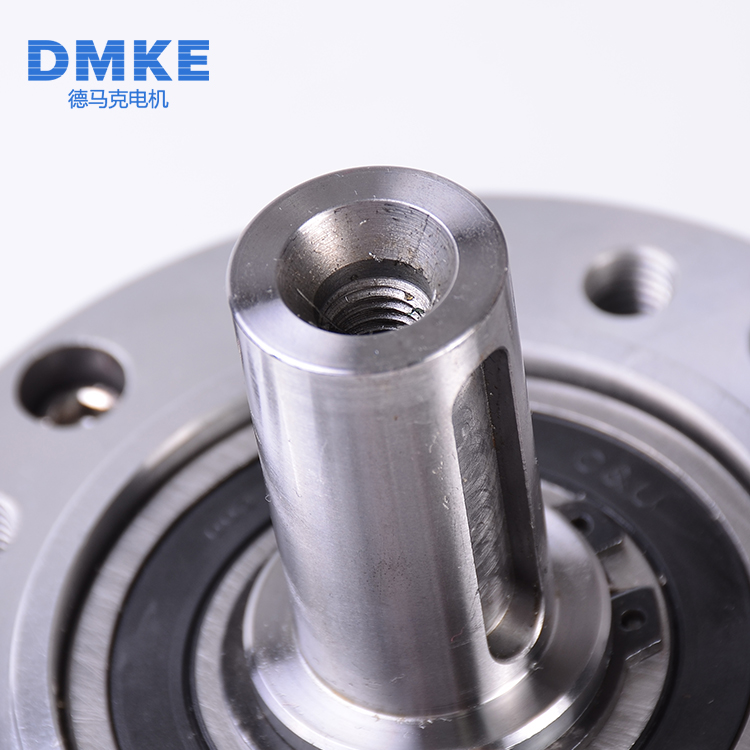

120mm planetary gear reducer

  • Type: Planetary gearbox speed reducer
  • Model: PLE120
    • Hotline: 86-18802037981
    •              86-13570144285
    • Email:  faye@gzdmkemotor.cn
    •            shirley@gzdmkemotor.cn
Consult
Optional 60mm, 80mm, 90mm, 120mm, 160mm
Rated output torque 8.5nm-680nm
Gear ratio   Single-stage 3, 4, 5, 7, 10
Gear ratio  Double-stage 12, 16, 20, 25, 28, 35, 40, 50, 70
Gear ratio  Three-stage 64, 80, 100, 125, 140, 175, 200, 250, 350, 400, 500, 700, 1000
Return gap 12arc-min~ 18arc-min

Gear ratio 3 4 5 7 10 12 16 20 25 28 35 40 50 70
Rated output torque (nm) 148 222 235 158 93 250 250 250 264 250 264 250 264 177
Maximum output torque (nm) 296 444 470 316 186 500 500 500 528 500 528 500 528 354
Rated inertia(kgcm2) 1.65 1.22 1.15 1.13 1.1 1.65 1.22 1.15 1.15 1.13 1.13 1.11 1.11 1.11
Gear ratio 64 80 100 125 140 175 200 250 280 350 400 500 700 1000
Rated output torque (nm) 310 310 310 329 310 329 310 329 310 329 310 329 220 130
Maximum output torque (nm) 620 620 620 658 620 658 620 658 620 658 620 658 440 260
Rated inertia(kgcm2) 1.15 1.15 1.15 1.15 1.13 1.13 1.11 1.11 1.11 1.11 1.11 1.11 1.11 1.11
