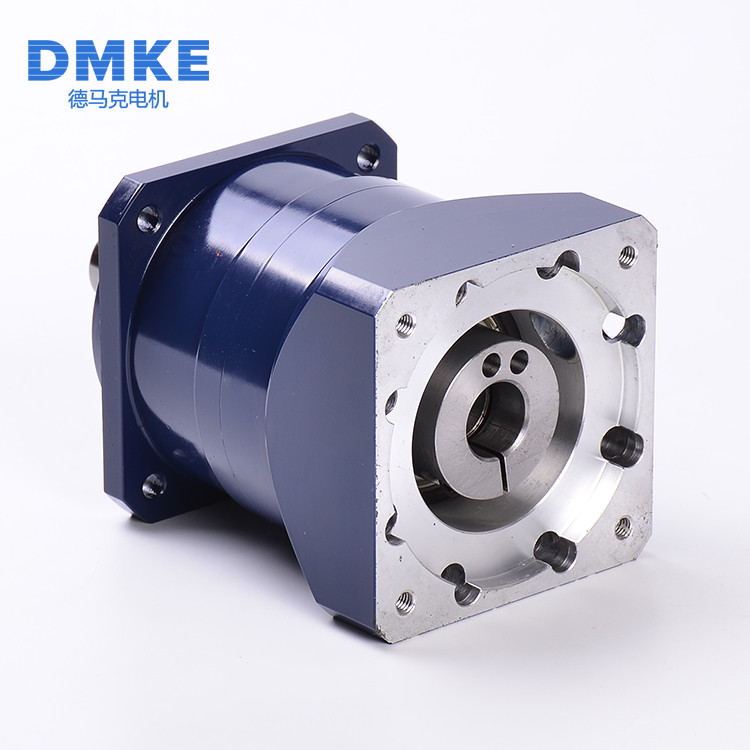

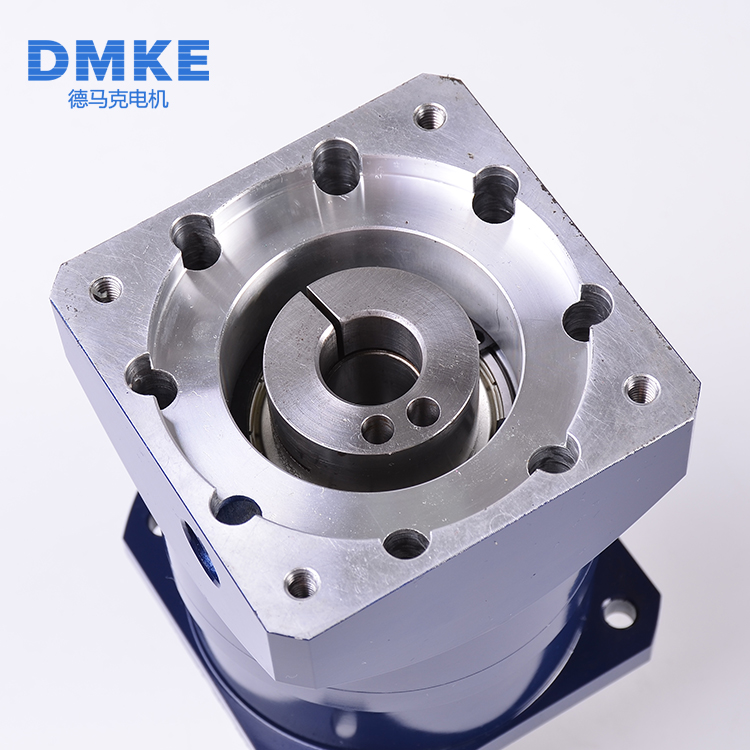

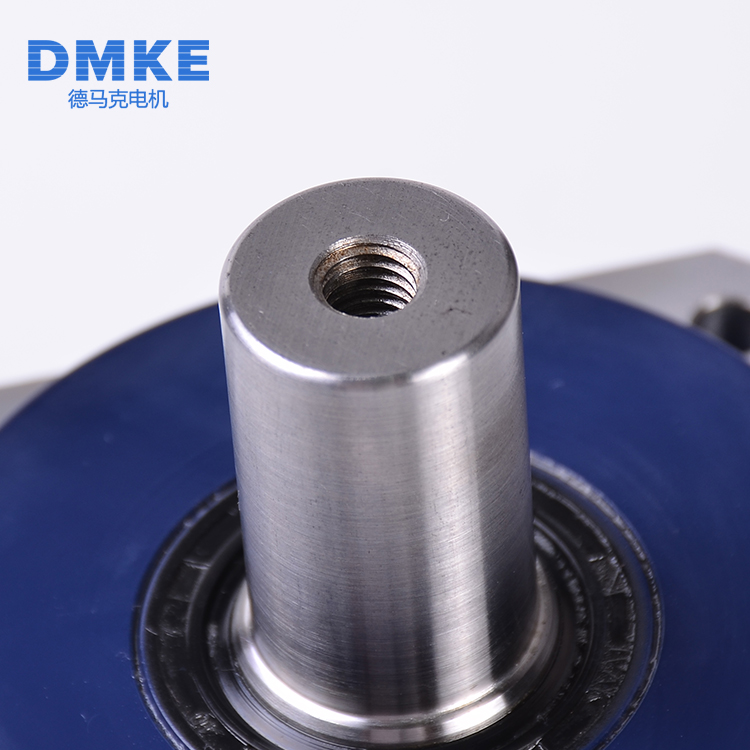

PLF90

  • Type: Planetary gearbox speed reducer
  • Model: PLF90
    • Hotline: 86-18802037981
    •              86-13570144285
    • Email:  faye@gzdmkemotor.cn
    •            shirley@gzdmkemotor.cn
Consult



Optional 60mm, 80mm, 90mm, 120mm, 160mm
Rated output torque 8.5nm-680nm
Gear ratio   Single-stage 3, 4, 5, 7, 10
Gear ratio  Double-stage 12, 16, 20, 25, 28, 35, 40, 50, 70
Gear ratio  Three-stage 64, 80, 100, 125, 140, 175, 200, 250, 350, 400, 500, 700, 1000
Return gap 12arc-min~ 18arc-min
Gear ratio 3 4 5 7 10 12 16 20 25 28 35 40 50 70
Rated output torque (nm) 60 86 94.5 64 39.5 96 96 96 105.5 96 105.5 96 105.5 71.5
Maximum output torque (nm) 120 172 189 128 79 192 192 192 211 192 211 192 211 143
Rated inertia(kgcm2) 0.4 0.309 0.291 0.285 0.283 0.4 0.309 0.291 0.291 0.285 0.285 0.283 0.283 0.283
Gear ratio 64 80 100 125 140 175 200 250 280 350 400 500 700 1000
Rated output torque (nm) 120 120 120 132 120 132 120 132 120 132 120 132 89.5 55
Maximum output torque (nm) 240 240 240 264 240 264 240 264 240 264 240 264 179 110
Rated inertia(kgcm2) 0.291 0.291 0.291 0.291 0.285 0.285 0.283 0.283 0.283 0.283 0.283 0.283 0.283 0.283
PLF90
