Gear Box Your Position： Home » Product Center
NAH-090--(2) NAH-090--(7) NAH-090--(8) NAH-090--(9) NAH-090--(10)

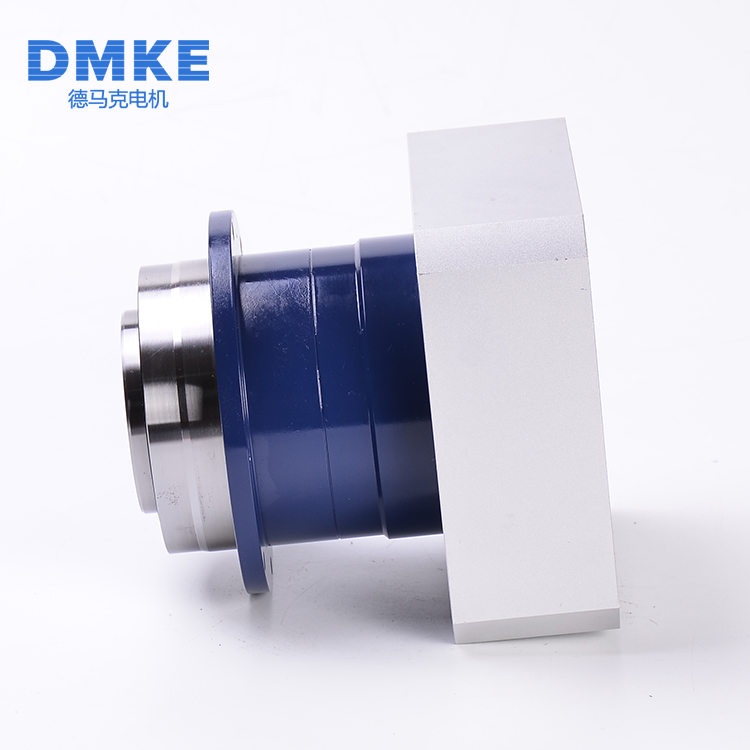

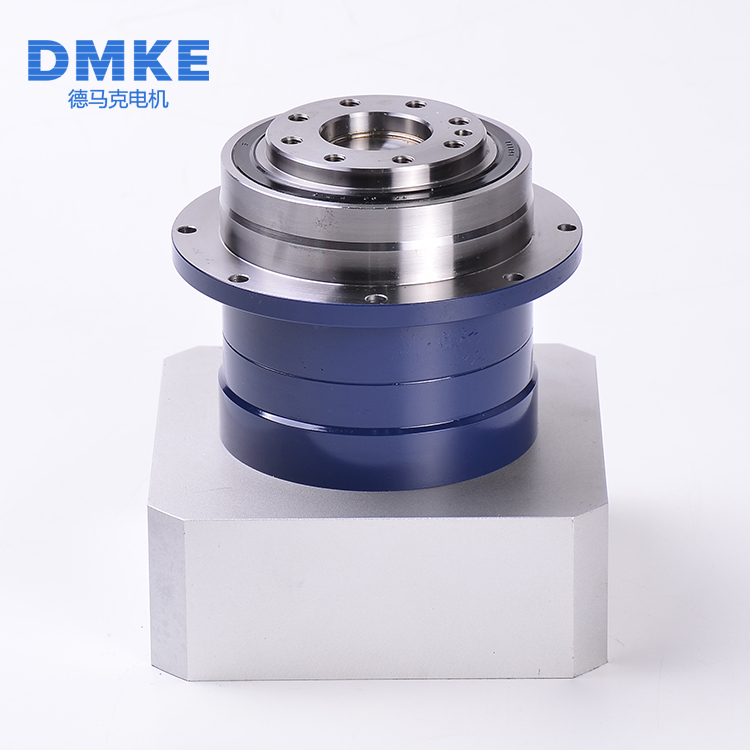

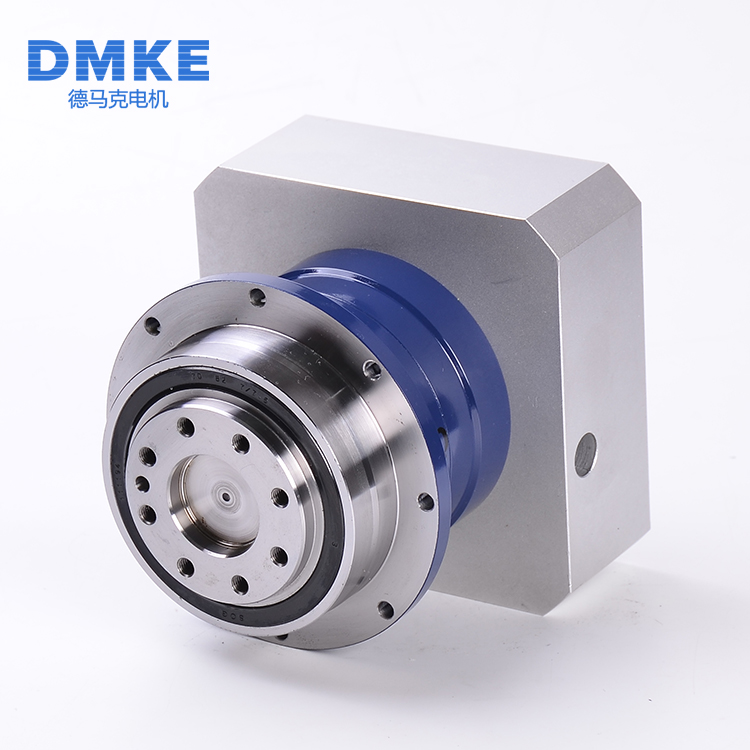

NAH-090

  • Type: Planetary gearbox speed reducer
  • Model:NAH-090
  • Speed(RPM): 4000RPM
    • Hotline: 86-18802037981
    •              86-13570144285
    • Email:  faye@gzdmkemotor.cn
    •            shirley@gzdmkemotor.cn
Consult
Optional 60mm, 90mm, 120mm, 160mm
Rated output torque 8.5nm-680nm
Gear ratio   Single-stage 3, 4, 5, 7, 10
Gear ratio  Double-stage 12, 16, 20, 25, 28, 35, 40, 50, 70
Gear ratio  Three-stage 64, 80, 100, 125, 140, 175, 200, 250, 350, 400, 500, 700, 1000
Return gap 12arc-min~ 18arc-min
Gear ratio 3 4 5 7 10 12 16 20 25 28 35 40 50 70
Rated output torque (nm) 16.5 27 29.5 19.5 8.5 30 30 30 33 30 33 30 33 21.5
Maximum output torque (nm) 33 54 59 39 17 60 60 60 66 60 66 60 66 43
Rated inertia(kgcm2) 0.107 0.094 0.092 0.091 0.091 0.107 0.094

0.092

 0.092 0.091 0.091 0.091 0.091 0.091
Gear ratio 64 80 100 125 140 175 200 250 280 350 400 500 700 1000
Rated output torque (nm) 37.5 37.5 37.5 41 37.5 41 37.5 41 37.5 41 37.5 41 27 11.5
Maximum output torque (nm) 75 75 75 82 75 82 75 82 75 82 75 82 54 23
Rated inertia(kgcm2) 0.092 0.092 0.092 0.092 0.091 0.091 0.091

0.091

 0.091 0.091 0.091 0.091 0.091 0.091
ZPLF060 customized 60mm 37.5nm 400rpm ratio 1:100 planetary gear box reducer
