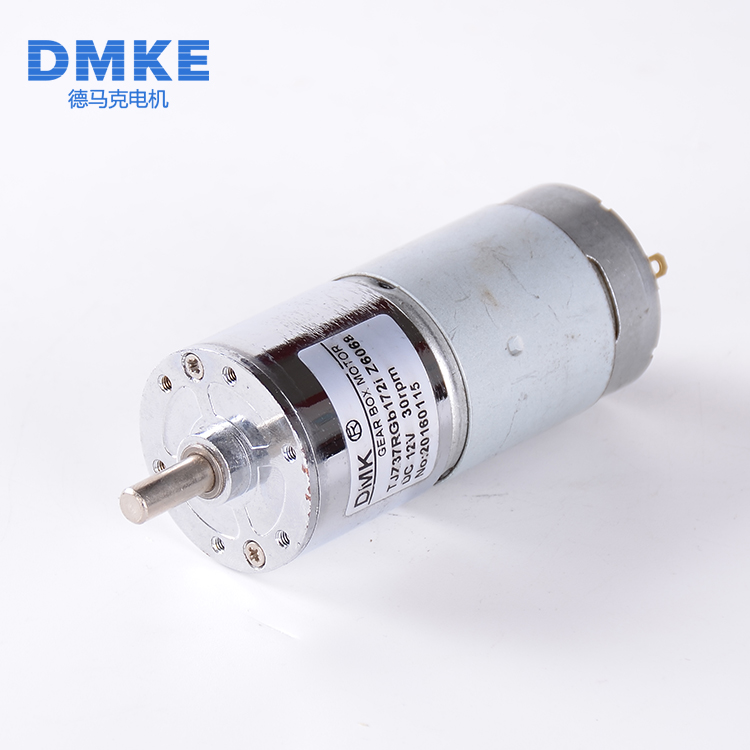

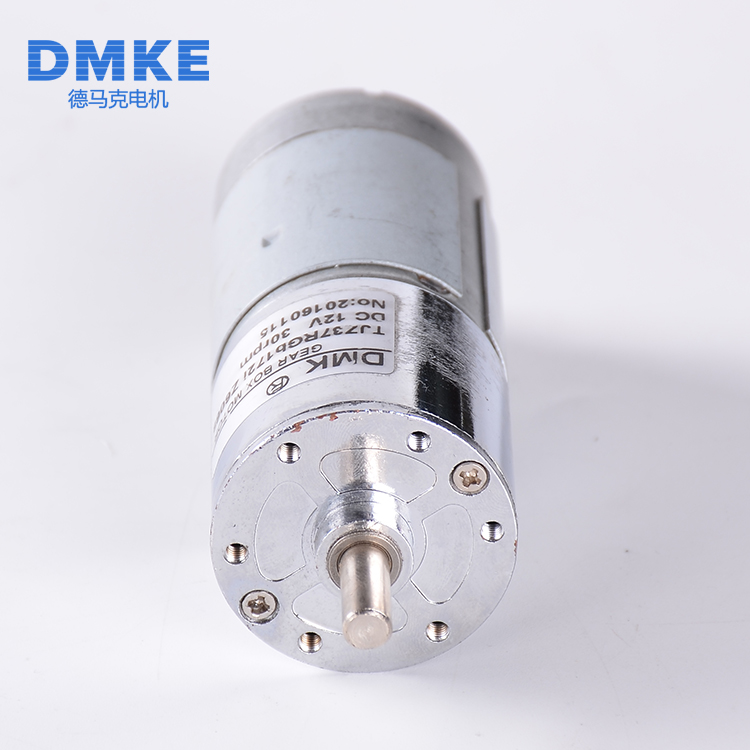

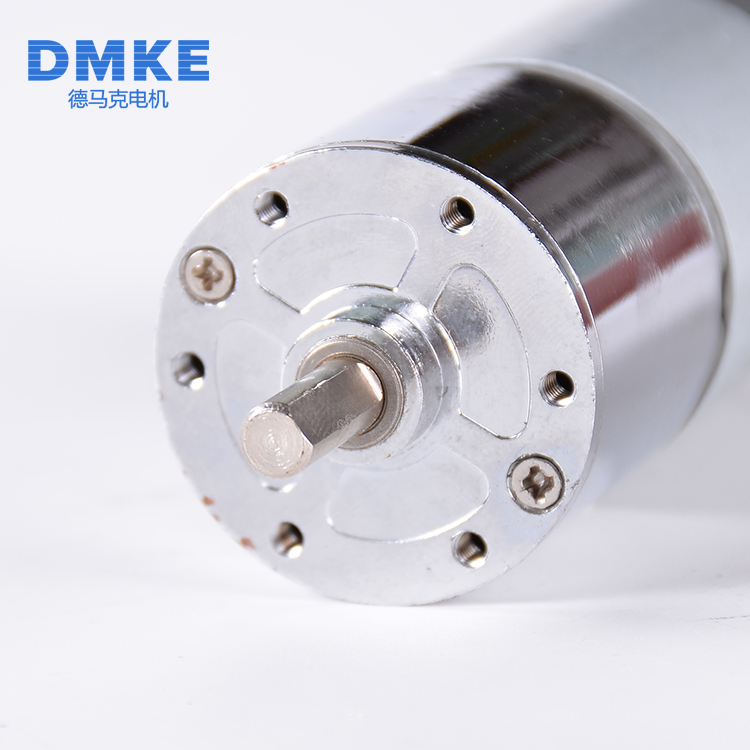

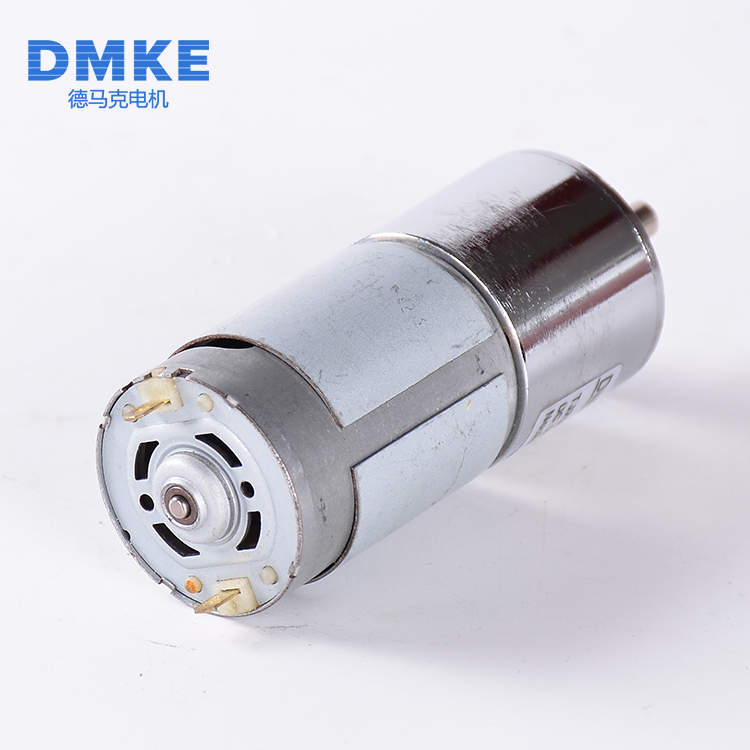

DB-37B555 12V24V38MM 555 gear motor

  • Type:Micro DC Gear Motor
  • Model:GB37-555
  • Voltage: 12V
  • Torque:200N.M
  • Speed(RPM): 120RPM
  • Output Power:5.7W
  • Usage: Fan/home appliancesteel safe/intelligent lock/lampblack machine
    • Hotline: 86-18802037981
    •              86-13570144285
    • Email:  faye@gzdmkemotor.cn
    •            shirley@gzdmkemotor.cn
Consult





Type  Micro dc gear motor
Material  Stainless steel
Advantage  Small dimension,low noise, low price, long life, With High toruqe,Ce, CCC, Rohs
Application

 Scissors machine, crane machine, electric-drive toy, projector, intelligent robot, automatic valve,  strongbox, dryer drying machine, automatic door-lock, intelligent cleaner,ATM bank automatic system, intelligent lock, lampblack machine, liquid crystal display screen, electric curtain, tie-yarn machine, massager, coffee machine, entertainment machine, automation Majang machine, automation machine, automation Majang machine, etc.



Motor

Rated

voltage

No load

speed

No load

current

Rated

speed

Rated

torque

Rated

current

Output

Stall

torque

Stall

current

VDC r/min mA r/min g.cm mA W g.cm A
DMK-555-1236 12 3600 150 3200 200 1000 5.7 1150 5.5
DMK-555-1245 12 4500 200 4200 220 1100 6 1100 5
DMK-555-2453 24 5300 120 5000 250 700 6.4 1000 2.7

Note: Above are only some typical models. For more information or a customized motor, Pls contact us.



Reduction Ratio:10-30

1

Reduction Ratio:44-90

2

 Reduction Ratio:169-270

3

 Reduction Ratio:506-810

4
