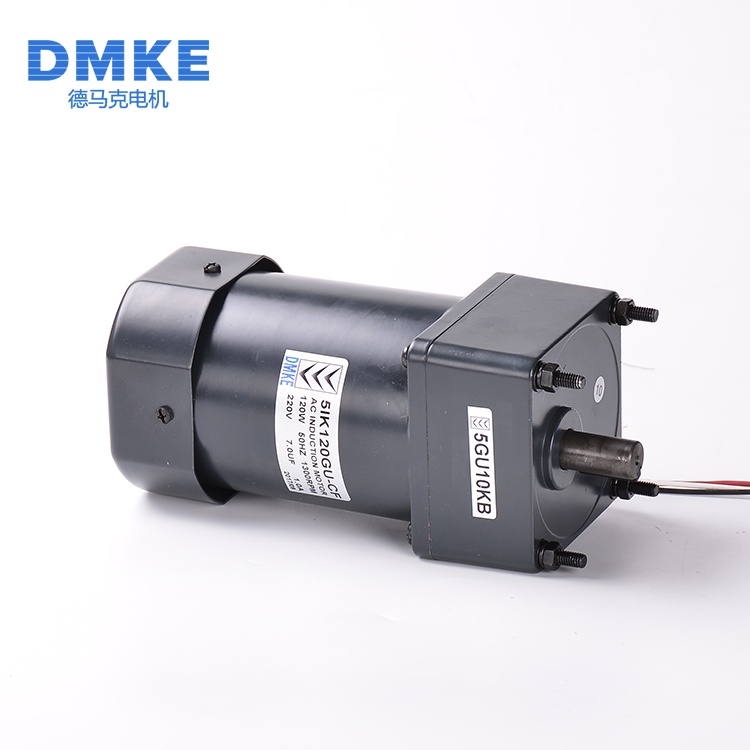

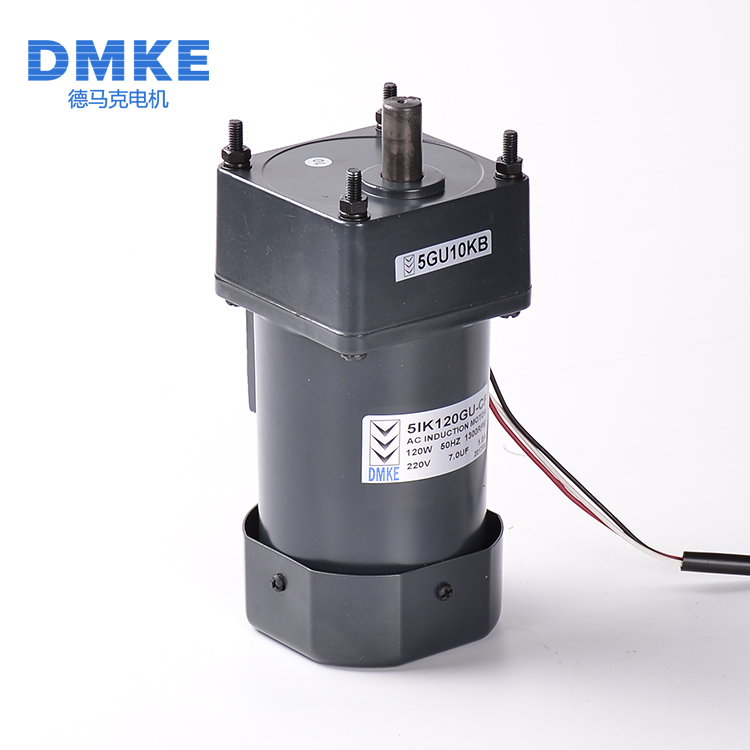

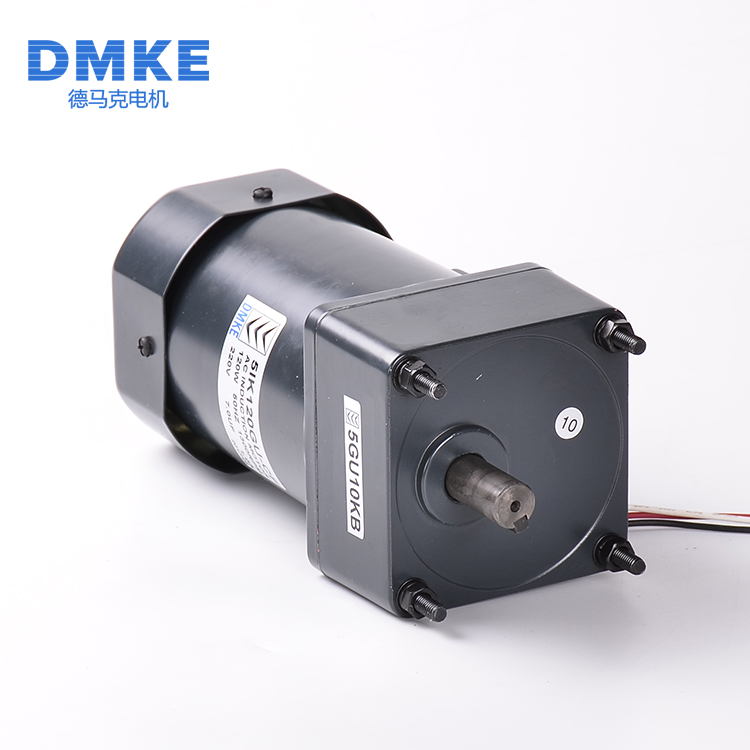

90MM 5IK90&120&140GU-CF

  • Type:Speed control motor
  • Model: 5IK90RGU-CFE/5GU25KB
  • Output Power: 90w
  • Hotline: 86-18802037981   86-13570144285
    • Email:  faye@gzdmkemotor.cn
    •            shirley@gzdmkemotor.cn
Consult

A. The wide range of ac and dc motor, easy for helping the customer to find the motor you want

B. Manufacture of ac motor over 9 years,1 year warranty period with stable property
C. Competitive price based on same quality motors
ModelLead Wire Type

Output

Power

Voltage Frequency Current

Starting

Torque

Allowace Torque

(N.m)

Speed Control Range Capacitor
Pinion Shaft Round Shaft W V HZ A mN.m 90r/minm 1200r/min r/min µF
5IK90RGU-AFJ 5IK90RA-AFJ 90 1ph100 50 2 405 230 710 90-1350 25
60 2 405 260 710 90-1700 25
5IK90RGU-CFE 5IK90RA-CFE 1ph220 50 0.8 410 230 710 90-1350 5
1ph230 50 0.8 410 230 710 90-1350 5

Note: Above are only some typical models. For more information or a customized motor, Pls contact us.



Dimensions (Unit: mm )

Mounting screws are included with gearhead

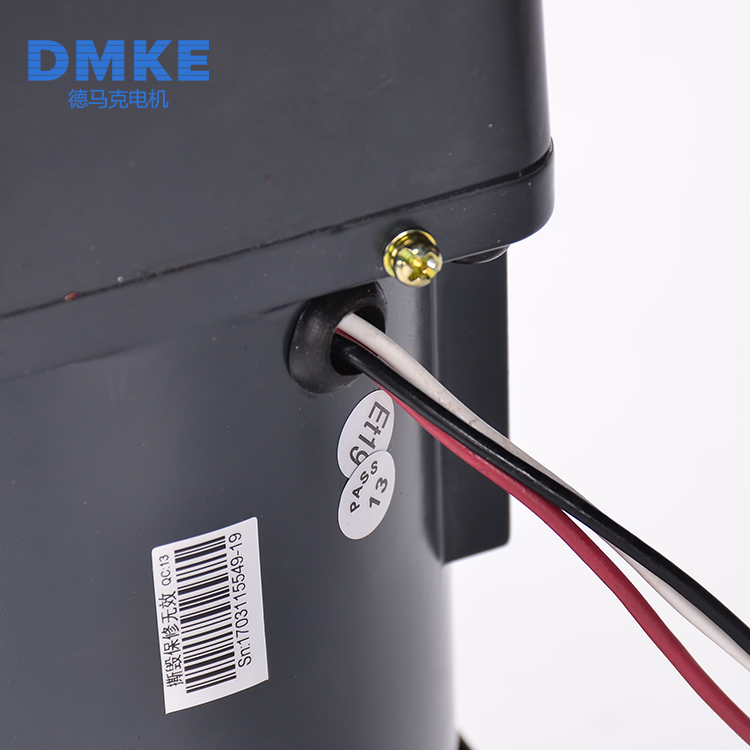

Lead Wire Type

Motor weight: 3.3kg    Gearhead weight: 1.5kg

Gear ratio:3-200, L=65.5





ALLOWABLE TORQUE BEING WITH GEARHEAD



       indicates of the motor while the others rotate in the opposite direction.

The speed is calculated by dividing the motors synchronous speed(50Hz:1500r/min, 60Hz: 1800 r/min) by the gear ratio.

The actual speed is 2%-20% less than the displayed value, depending on the size of the load.

Allowance Torque Unit: Upside(N.m)/Below side(kgf.cm)





Flange Mounting Reducer

Can be mounted on GU type gear shaft

Weight:1.65kg

Key·Keyway(Accessory of Gearhead)

Shaft Section of Round Shaft Type

Excluding weight and the shaft section, motor shape are the same as those of the pinion shaft type.

Decimal Gearhead

Can be connected to GU pinion shaft type

Weight:0.65KG



Wiring Diagram
