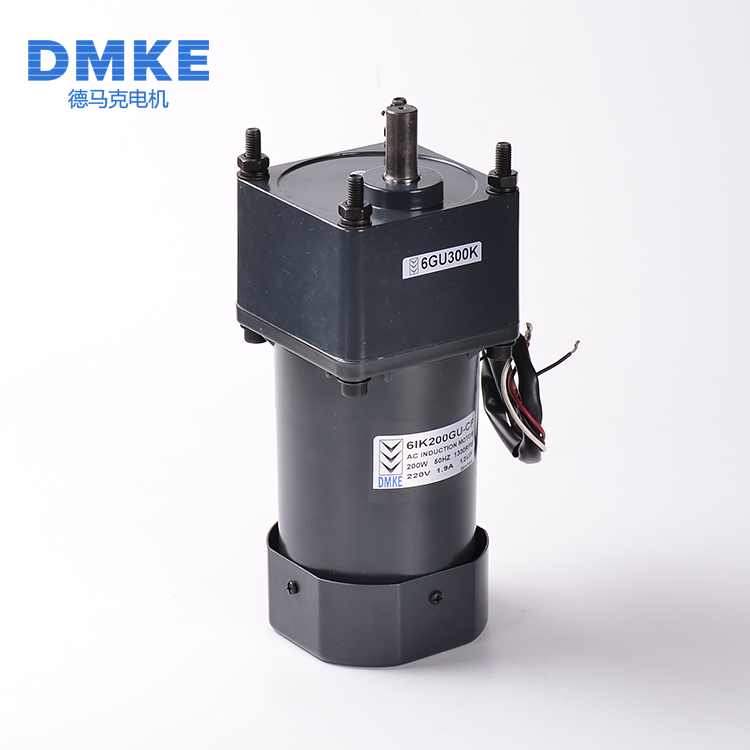

100MM 6IK120&140&180&200GU-CF

  • Type:Speed control motor
  • Model: 6IK120&140&180&200GU-CF
  • Voltage: 100v, 220V, 230V
  • Torque:0.24N.M
  • Output Power: 60w
  • Hotline: 86-18802037981   86-13570144285
    • Email:  faye@gzdmkemotor.cn
    •            shirley@gzdmkemotor.cn
Consult
A. The wide range of ac and dc motor, easy for helping the customer to find the motor you want
B. Manufacture of ac motor over 9 years,1 year warranty period with stable property
C. Competitive price based on same quality motors
Model
Lead Wire Type
Output Power Voltage Frequency Current

Starting

Torque

Allowance Torque

(N.m)

Speed Control Range Capacitor
Pinion Shaft W V HZ A mN.m 90r/min 1200r/min r/min µF
5IK60RGU-AFJ 60 1ph100 50 1.2 265 140 460 90-1350 20
60 1.2 265 160 490 90-1700 20
5IK60RGU-CFE 1ph220 50 0.6 265 140 490 90-1350 4
1ph230 50 0.6 265 140 490 90-1350 4
Dimensions (Unit: mm )

Mounting screws are included with gearhead

Lead Wire Type

Motor weight: 2.8kg    Gearhead weight: 1.5kg

Gear ratio:3-200, L=65.5





ALLOWABLE TORQUE BEING WITH GEARHEAD



Indicates if the motor while the others rotate in the opposite direction.

The speed is calculated by dividing the motors synchronous speed(50Hz:1500r/min, 60Hz: 1800 r/min) by the gear ratio.

The actual speed is 2%-20% less than the displayed value, depending on the size of the load.

Allowance Torque Unit: Upside(N.m)/Below side(kgf.cm)

Flange Mounting Reducer

Can be mounted on GU type gear shaft

Weight:1.5kg

Key·Keyway(Accessory of Gearhead)



Shaft Section of Round Shaft Type

Excluding weight and the shaft section, motor shape are the same as those of the pinion shaft type.

Decimal Gearhead

Can be connected to GN pinion shaft type

Weight:0.65KG



Wiring Diagram
