Single Phase AC Motor Your Position: Home » Product Center

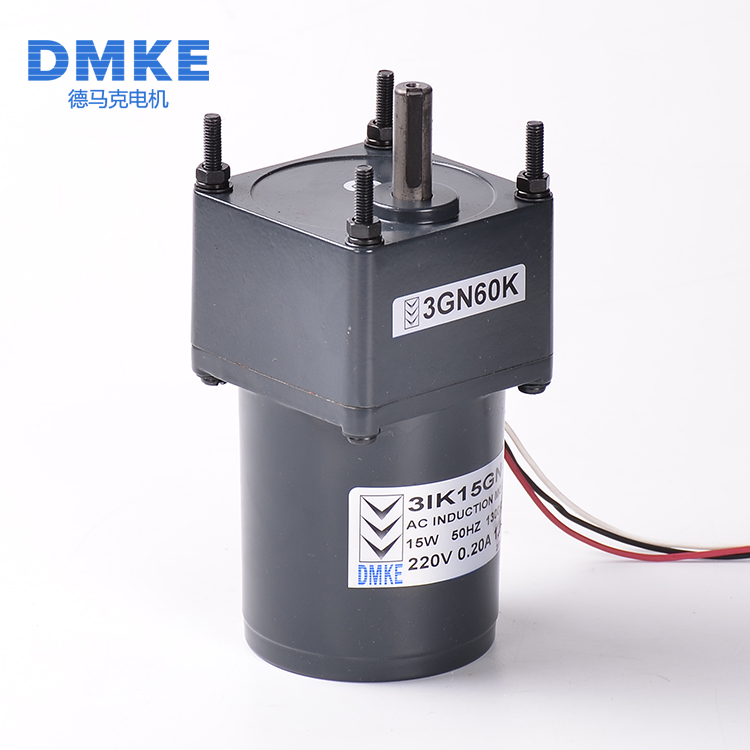

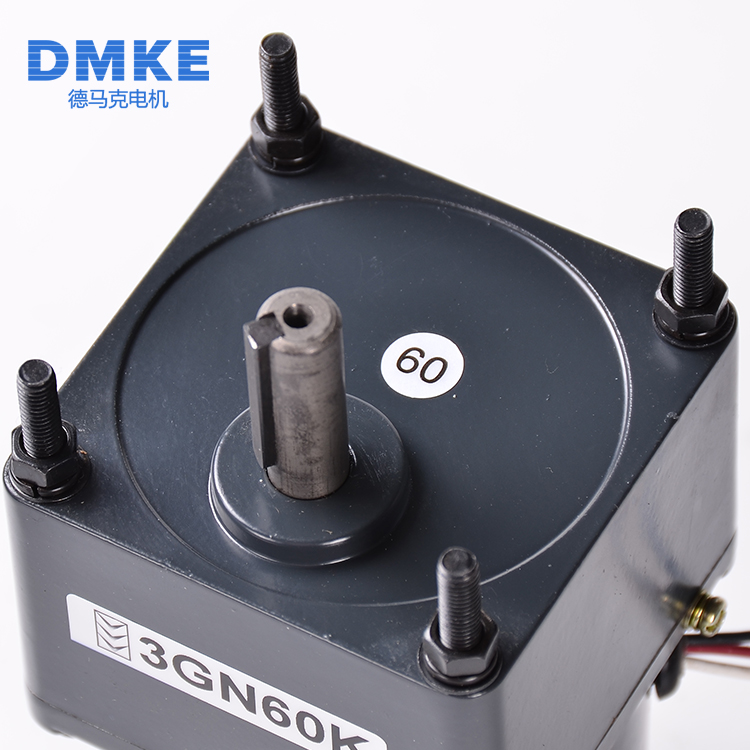

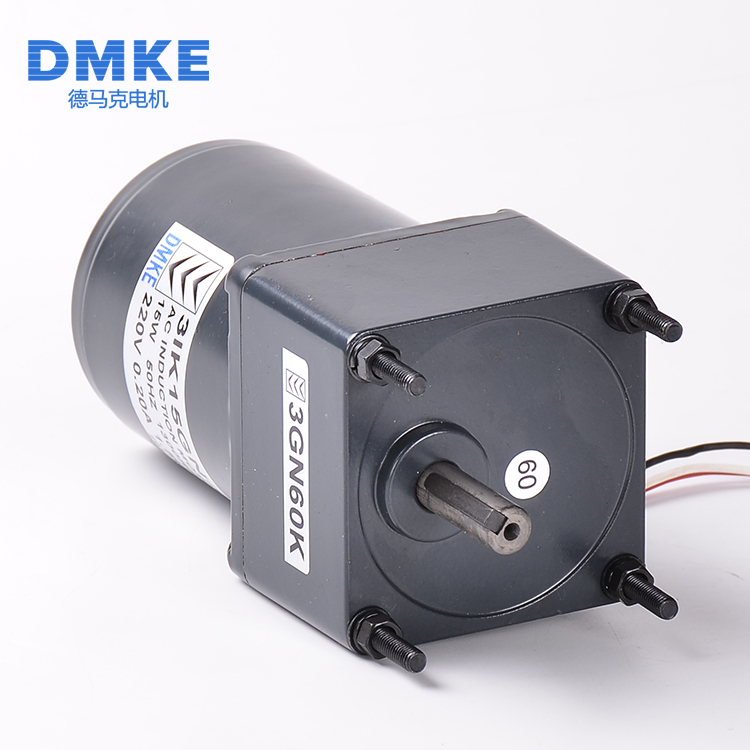

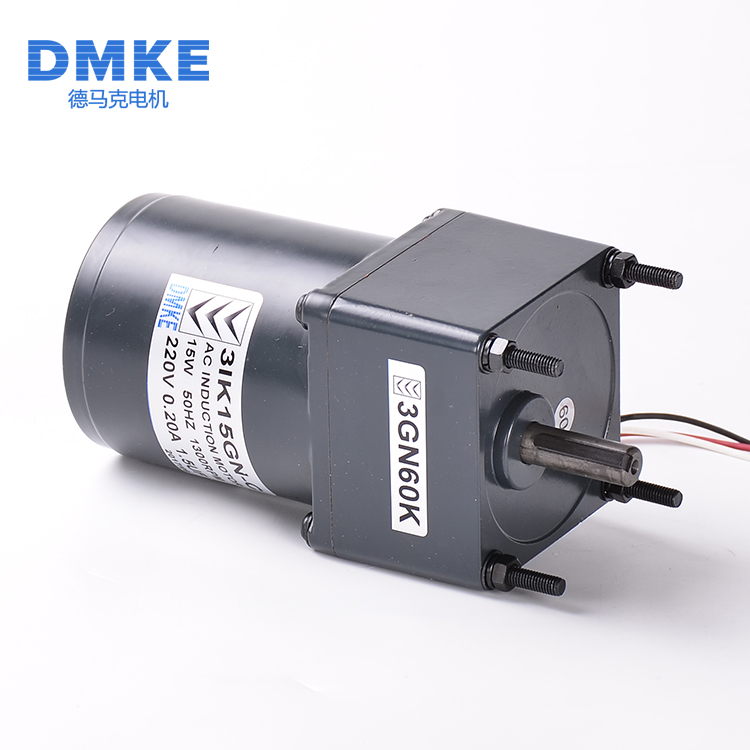

70MM 3IK15GN-C

  • Type:Speed control motor
  • Model:3IK15GN-C
  • Voltage: 100v, 220V, 230V
  • Model Number:3IK15GN-CM
  • Output Power: 15w
  • Hotline: 86-18802037981   86-13570144285
    • Email:  faye@gzdmkemotor.cn
    •            shirley@gzdmkemotor.cn
Consult
Model
Lead Wire Type
Output Power Voltage Frequency Current Starting Torque Rated Torque Rated Speed Capacitor
Pinion Shaft Round Shaft W V HZ A mN.m mN.m r/min µF
3IK15GN-AJ 3IK15A-AJ 15 1ph100 50 0.35 90 125 1200 6.0
60 0.33 85 105 1450 6.0
3IK15GN-CE 3IK15A-CE 1ph220 50 0.18 90 125 1200 1.2
1ph230 50 0.2 90 125 1200 1.2
3IK15GN-S 3IK15A-S 3ph220 50 0.14

220

125 1200  -
60 0.12 180 105 1450  -
Dimensions (Unit: mm )

Mounting screws are included with gearhead

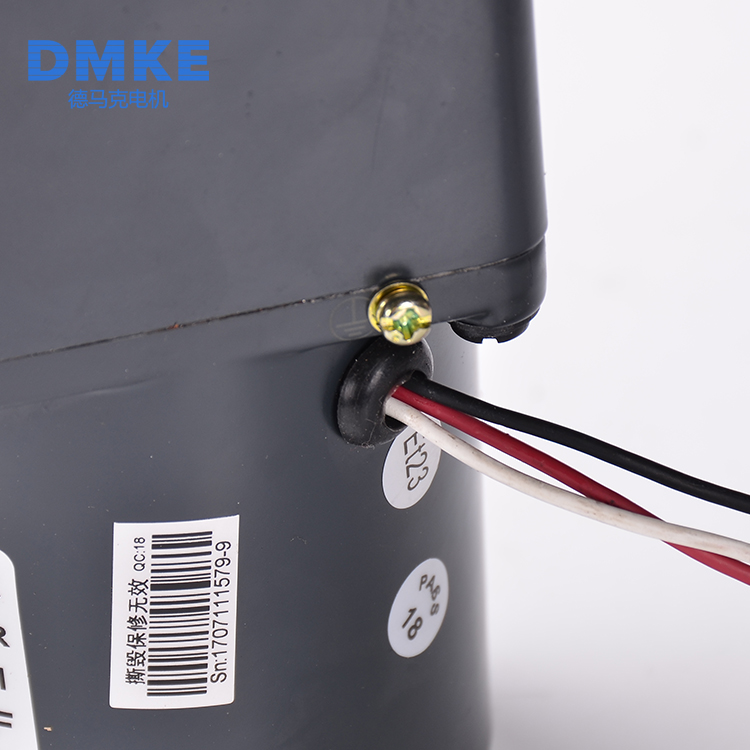

Lead Wire Type

Motor weight: 1.1kg    Gearhead weight: 0.5kg

Gear ratio:3-18,L1=32

Gear ratio:25-200,L1=42




ALLOWABLE TORQUE BEING WITH GEARHEAD



       indicates of the motor while the others rotate in the opposite direction.

The speed is calculated by dividing the motors synchronous speed(50Hz:1500r/min, 60Hz: 1800 r/min) by the gear ratio.

The actual speed is 2%-20% less than the displayed value, depending on the size of the load.

Allowance Torque Unit: Upside(N.m)/Below side(kgf.cm)



3IK15GN
Key·Keyway(Accessory of Gearhead)

Shaft Section of Round Shaft Type

Excluding weight and the shaft section motor shape are the same as those of the pinion shaft type.


Decimal Gearhead

Can be connected to GN pinion shaft type

Weight:0.3KG





Formal Dimension of Capacitor

Model Capacitor Model L W H
Pinion Shaft Round Shaft
3IK15GN-A 3IK15A-A ZD60CFAUL 48 23 32
3IK15GN-E 3IK15A-E ZD50CFAUL 47 20 31
3IK15GN-C 3IK15A-C ZD12BFAUL 36 12 22

1
Note:Conventional capacitor is a lead wire type. Inserted 187# is optional
