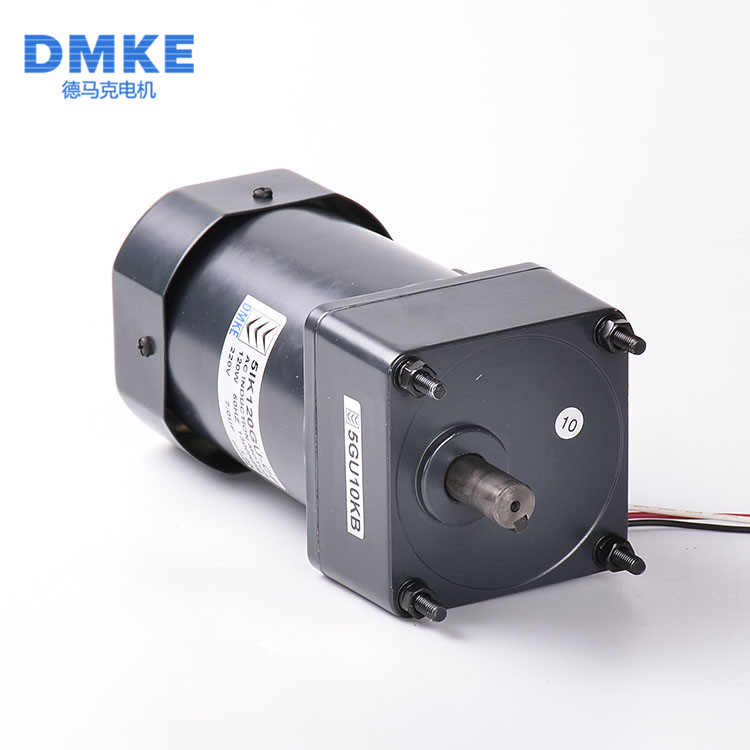

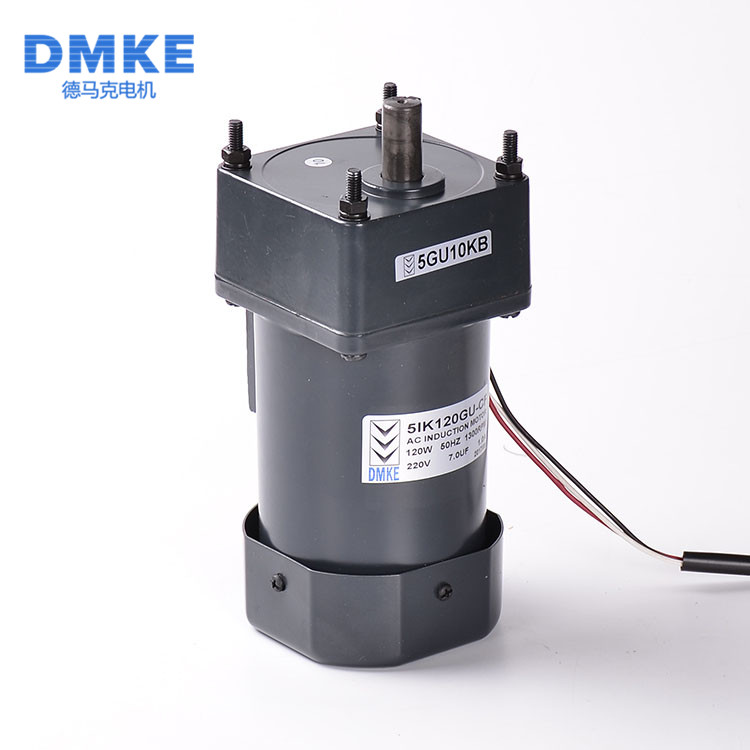

5IK90GU-CFE Precision Gear Motor

  • Type: Precision Gear Motor
  • Model:5IK90GU-CFE
  • Hotline: 86-18802037981   86-13570144285
    • Email:  faye@gzdmkemotor.cn
    •            shirley@gzdmkemotor.cn
Consult
Model
Lead Wire Type
Output Power Voltage Frequency Current Starting Torque Rated Torque Rated Speed Capacitor
Pinion Shaft Round Shaft W V HZ A mN.m mN.m r/min µF
5IK90GU-AFJ 5IK90A-AFJ 90 1ph100 50 1.55 450 700 1250 25
60 1.85 450 570 1550 25
5IK90GU-CFE 5IK90A-CFE 1ph220 50 0.72 450 700 1250 5
1ph230 50 0.7 450 700 1250 5
5IK90GU-S 5IK90A-SF 3ph220 50 0.6 1350 700 1250  -
60 0.55 1100 570 1550  -



Note: Above are only some typical models. For more information or a customized motor, Pls contact us.



Dimensions (Unit: mm )

Mounting screws are included with gearhead

Lead Wire Type

Motor weight: 3.2kg    Gearhead weight: 1.5kg

Gear ratio:3-18, L1=65.5






ALLOWABLE TORQUE BEING WITH GEARHEAD



       indicates of the motor while the others rotate in the opposite direction.

The speed is calculated by dividing the motors synchronous speed(50Hz:1500r/min, 60Hz: 1800 r/min) by the gear ratio.

The actual speed is 2%-20% less than the displayed value, depending on the size of the load.

Allowance Torque Unit: Upside(N.m)/Below side(kgf.cm)



5IK90GU



Flange Mounting Reducer

Can be mounted on GU type gear shaft

Weight:1.5kg

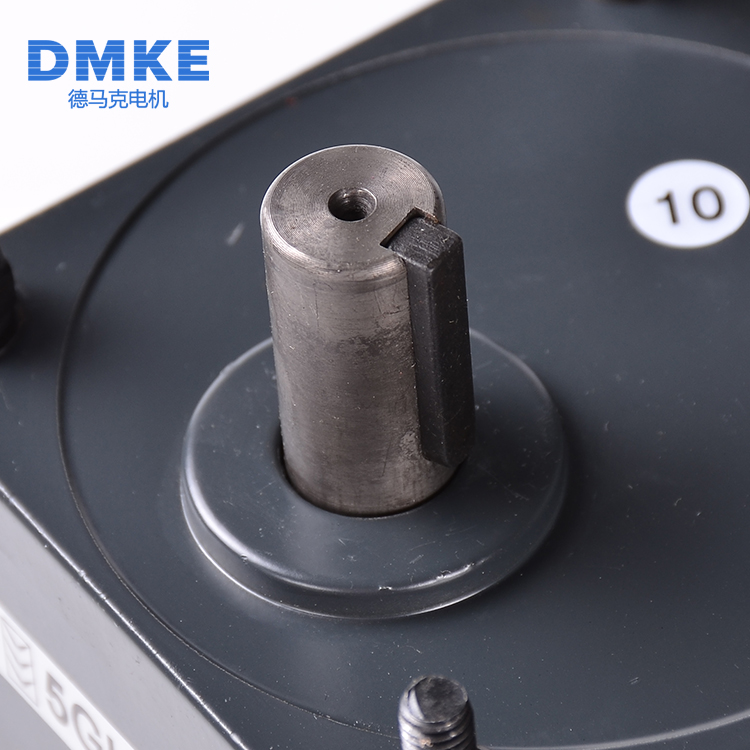

Key·Keyway(Accessory of Gearhead)

Shaft Section of Round Shaft Type

Excluding weight and the shaft section motor shape are the same as those of the pinion shaft type.

Decimal Gearhead

Can be connected to GU pinion shaft type

Weight:0.65KG



Formal Dimension of Capacitor



Model Capacitor Model L W H
Pinion Shaft Round Shaft
5IK90GU-AF 5IK90A-AF ZD250CFAUL 47 27 37
5IK90GU-EF 5IK90A-EF ZD200CFAUL 47 23 35
5IK90GU-CF 5IK90A-CF ZD50BFAUL 47 20 31







Wiring Diagram
