Single Phase AC Motor Your Position: Home » Product Center

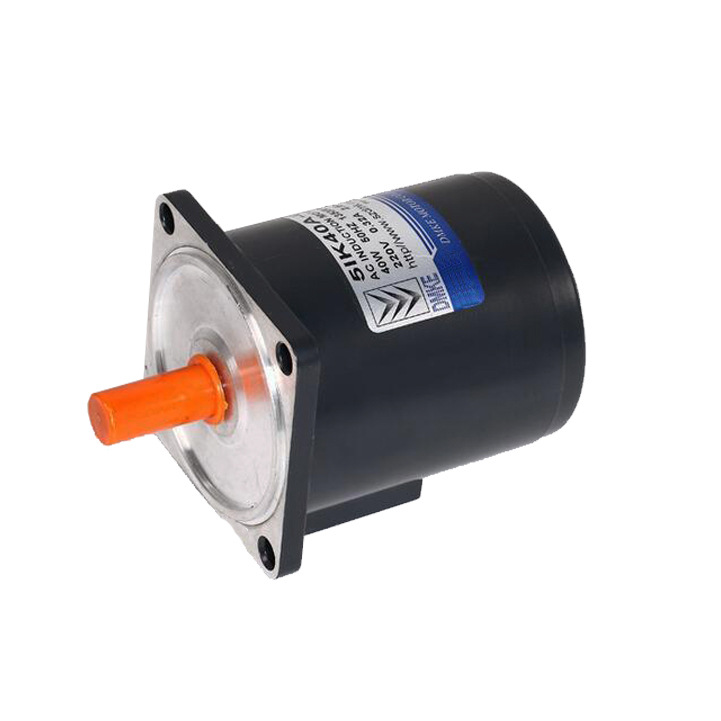

5IK40GN-CE

  • Type: AC Induction Motor
  • Model:5IK40GN-CE
  • Hotline: 86-18802037981   86-13570144285
    • Email:  faye@gzdmkemotor.cn
    •            shirley@gzdmkemotor.cn
Consult
Model
Lead Wire Type
Output Power Voltage Frequency Current Starting Torque Rated Torque Rated Speed Capacitor
Pinion Shaft Round Shaft W V HZ A mN.m mN.m r/min µF
5IK40GN-AJ 5IK40A-AJ 40 1ph100 50 0.65 220 315 1250 12
60 0.7 220 260 1550 12
5IK40GN-CE 5IK40A-CE 1ph220 50 0.35 220 315 1250 2.5
1ph230 50 0.4 220 315 1250 2.5
5IK40GN-S 5IK40A-S 3ph220 50 0.3 800 315 1250  -
60 0.25 660 250 1550  -



Note: Above are only some typical models. For more information or a customized motor, Pls contact us.



Dimensions (Unit: mm )

Mounting screws are included with gearhead

Lead Wire Type

Motor weight: 2.4kg    Gearhead weight: 1.35kg

Gear ratio:3-18,L1=42

Gear ratio:25-200,L1=60





ALLOWABLE TORQUE BEING WITH GEARHEAD



       indicates of the motor while the others rotate in the opposite direction.

The speed is calculated by dividing the motors synchronous speed(50Hz:1500r/min, 60Hz: 1800 r/min) by the gear ratio.

The actual speed is 2%-20% less than the displayed value, depending on the size of the load.

Allowance Torque Unit: Upside(N.m)/Below side(kgf.cm)



5IK40GN



Key·Keyway(Accessory of Gearhead)

Shaft Section of Round Shaft Type

Excluding weight and the shaft section motor shape are the same as those of the pinion shaft type.

Decimal Gearhead

Can be connected to GN pinion shaft type

Weight:0.6KG



Formal Dimension of Capacitor

Model Capacitor Model L W H
Pinion Shaft Round Shaft
5IK40GN-A 5IK40A-A ZD120CFAUL 47 17 31
5IK40GN-E 5IK40A-E ZD80CFAUL 48 26.5 38
5IK40GN-C 5IK40A-C ZD25BFAUL 38 17 28

1



Wiring Diagram
