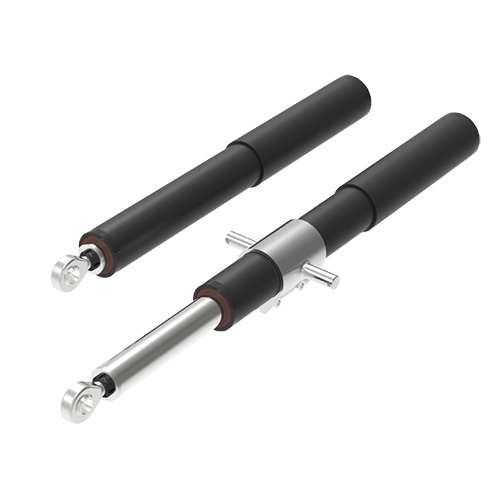

  • DMK75 linear actuator
  • DMK75 linear actuator
Style#: DMK75

DMK75 12v 24v low voltage linear actuator

Voltage of motor: 24V DC
Maximum load: 15,000N in push
Maximum speed at full load: 70mm/s ( load 500N)
The slowest speed at full load: 3mm / s (Load 15,000N)

Stroke: 30~1200mm

Contact us for quote now:
Shirley Fu
Tel#/WhatsApp:  86-13640275665
Email: shirley.fu@beudmke.com

Harsh applications require equally demanding actuator solutions. DMK75 series linear actuators are specially developed for solar photovoltaic tracking system applications. Solar applications require actuators to have greater lifting and retention capabilities. Realizing these requirements will not at the same time reduce the well-known DMK quality. So we can also guarantee DMK75 series linear actuators have the least number of maintenance and service life up to 20 years。

General Features
 Voltage of motor: 24V DC
Maximum load: 15,000N in push
Maximum speed at full load: 70mm/s ( load 500N)
The slowest speed at full load: 3mm / s (Load 15,000N)
Stroke: 30~1200mm
Minimum dimensions: Stroke + 500 mm(S<300 mm)
                                Stroke + 520 mm (S>300 mm)
Color: black
IP rating: IP67K
Operational temperature range: -45°C~+75°C
Operational temperature range at full performance: +5°C~+45°C
Higher duty cycle (25%)
Other options: Hall sensor(Dimensions=Minimum dimension+30 mm)
High-strength metal 406 carbon steel housing protects motors and gears
Stainless steel inner tube
Built-in limit switches (not adjustable)
DMK75 Series
Load±10%(N)15000100007000500030001500500
Speed±20%(mm/S)351015205070
Stroke±2(mm)501001502002503003501200
Size(mounting dimensions±2mm)5506006507007508008701720

DMK75 linear actuator size drawing
