BeUDMKE bldc motor

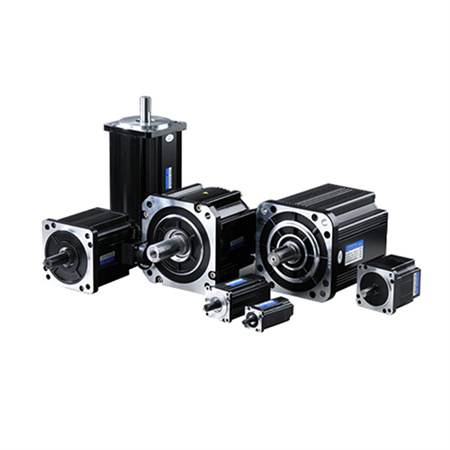

  • brushless servo motor
  • brushless servo motor
  • brushless servo motor
  • brushless servo motor
Model:180M-23020C5-E

180mm 48v 4.8kw 20nm robotics brushless servo motor high torque

Type:dc servo motor
Rated Power:4.8W
Rated Voltage:48v
Rated  current:135A±10%
Rated Speed: 2000RPM/MIN
Peak speed: 2200RPM/MIN
Rated torque:23N.m
Line Back EMF.(V/krpm):11±10%

Poles:10poles

Contact us for quote now:
Shirley Fu
Tel#/WhatsApp:  86-13640275665
Email: shirley.fu@beudmke.com

Warm reminder: 130 mm servo motor can be processed for the following power :

Rated PowerRated TorqueRated SpeedRated Voltage
2900W191500rpmDC48V/72V
AC220V/380V
4400W27
5500W35
7500W48
4000W192000rpmDC48V/72V
5500W27
7000W35
10000W48
6000W193000rpm
8800W27
10000W35DC72V/96V



Below specification is based on 4.8kw 48v 2000rpm without brake. Please contact us for the updated specification form if you need other power. Thanks

BASIC PARAMETERS
Rated Output(Kw):4.8Number of Poles:10
Rated Voltage(V):DC48Vibration Class:F
Rated Spced(pm):2000Max.Speed(pm):2200
Rated Current(A):135±10%Instantaneous Max.Current(A);270±10%
Rated Torque(N.m):23Instantaneous Peak Torquc(N.m):46
Line Resistance(Ω):±10%(25℃)Line Inductanc(mH):±10%
Line Back EMF(Vkrpm):11±10%Torque Coefficient(N.m/A):0.18±10%
Rotor Moment of Inertia(Kg.m²×10-):84±10%Feedback Component:Incremental Encoder,
2500PPR
Static Torque(N.m):–Rated Voltagc(V):–
Insulation Resistance(M2):DC500V,>20MΩNoise(dB):≤60dB,None Special Noise
Time rating:ContinuousVibration Class:V15
Ambient Temperature:0~+40℃Ambient Humidity:20~80%No Condensation
Excitation:Permanent MagnetMounting:Flange Method
Drive Mehod:Direct DriveWeight(Kg):–
Enclosure:Totally Enelosed,Self-cooled,IP65(except for shaft opening)
Rotation Direction:Counterelockwise(CCW)

brushless servo motor size drawing
