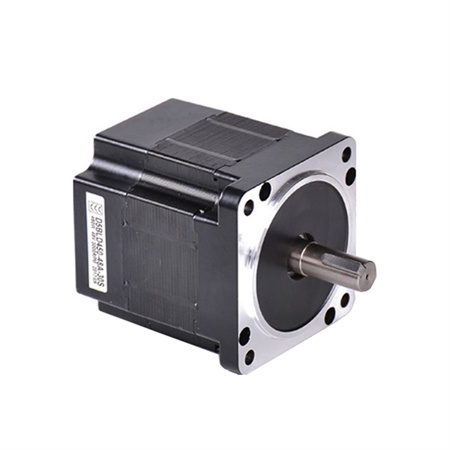

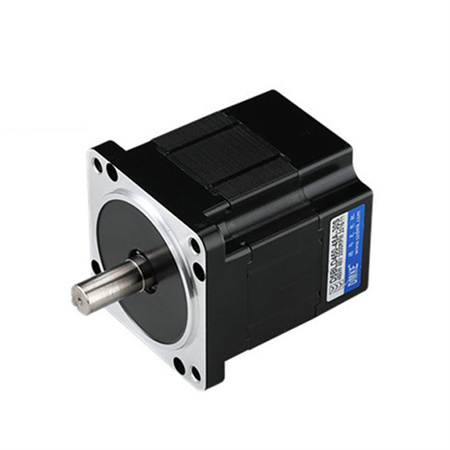

12v 24v 3 phase sensored bldc brushless dc motor 12v 24v

  • Type:bldc brushless dc electric fan motor
  • Model: D5BLD450-24A-30S
  • Rated Power:450W
  • Rated Voltage: 24v
  • Rated  current:23.43A
  • Rated Speed: 3000RPM/MIN
  • Peak speed: 3300RPM/MIN
  • Rated torque:1.43N.m
  • Protection rank:IP54
  • Poles:8poles
    • Hotline: 86-18802037981
    • Email:  shirley.fu@gzdmkemotor.cn
Consult

Dimensions (Unit: mm )



D5BLD450
Model
12A-30S
24A-30S
36A-30S
Power W
450
450
450
Voltage V
12
24
36
No load speed rpm
3300
3300
3300
Rated speed rpm
3000
3000
3000
Rated current A
46.88
23.44
15.63
Rated torque N.m
1.43
1.43
1.43
Peak torque N.m
4.30
4.30
4.30
No-load current A
<10.2A
<7.13A
<0.65A
Model

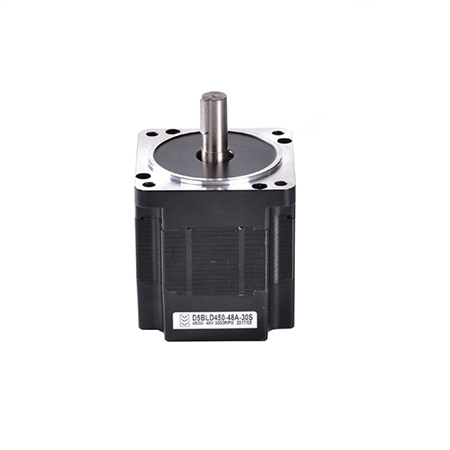

D5BLD450-48A-30S
D5BLD450-310A-30S
Power W
450
450
Voltage V
48
310
No load speed rpm
3300
3300
Rated speed rpm
3000
3000
Rated current A
11.72
1.81
Rated torque N.m
1.43
1.43
Peak torque N.m
4.30
4.30
No-load current A
<5.61A
<0.8A
Customizable accessories:motor length, shaft, voltage,power,rated speed and so on.



Note: Above are only some typical models. For more information or a customized motor, Pls contact us.


Feature:

A. High power range from 5W to 20KW
B. Rich stock and fast shipping time in 10 working days
C. Easy for speed & direction adjustment
D. 16mm to 220mm size range with low noisy
E. Strong stability for driver/controller
F. Lifetime above continuous 10000 hours
G. IP65 protection rank is available for us
H. Above 90% enery efficiency motor is available
I. 3D file is available if customers needed
J. Permanent magnet brushless dc motor

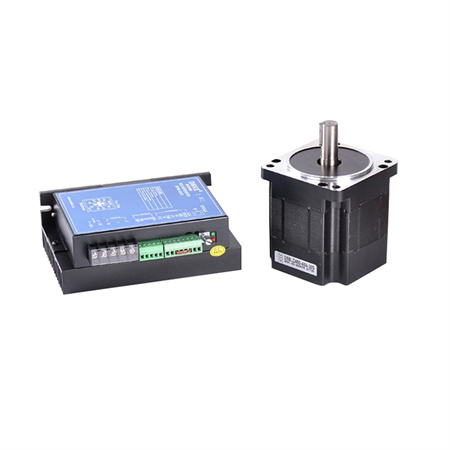

K.High-performance and stable matching driver and controller


Notice for Usage:
1).Please don't use motor out of the range of nameplate of gear box and motor and the specification of product catalogue, avoiding getting an electric shock, hurting or damaging the device.
2).Please do not put your fingers and things into the opening part of gear or motor ,in order to prevent getting and electric shock,hurting,catching a fire of damaging device etc.
3).Please do not use the Injured gear head of motor, in prder to orevent hurting,catching a fire etc. 4).Please do not put off the nameolate.
5) If the products are reformed by the customers personally, it no longer belongs to the guarantee scope, and our company doesn’t undertake any responsibility.
6) When you move it, if it shed off or tilt to one side, it is very dangerous, please pay more attention.
7) Please must not put the flammable thing near the gear head and motor, in order to prevent catching a fire.
